Divided into the following four product series according to required power range:
UC: < 640W（微焦点）
FC: 640W – 1000W（low power）
CF: 1250 – 1800W（digital imaging）
GX: 3025 – 12000W（high power）
GX Series (50kV-450kV)
● 45 kHz high-frequency technology, fast tube voltage ramp-up, from 0 to maximum power in just 800 ms, widely used in film radiography and dynamic imaging
● This series incorporates various features and leading parameters, including PFC (Power Factor Correction), TRM (X-ray tube arc monitoring and prevention), and tube arc management technology

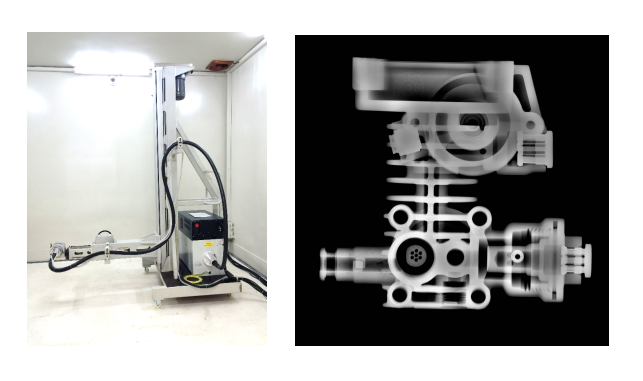

● Optional accessories such as tube head stand and tube head trolley to improve work efficiency
System Composition - Flexible Configuration of Generator and Control Unit
"We provide a variety of high-voltage generators, X-ray tubes, coolers, and high-voltage cables. All products are tested and screened, and are ready to use right out of the box."
45 kHz high-frequency constant potential ------------------------- High precision and high stability output
Oil-insulated high-voltage generator-------------------------High reliability, easy maintenance
Modular epoxy resin sealed voltage multiplier rectifier technology---------High reliability, easy maintenance, low repair cost
Power Factor Correction (PFC) technology --- High reliability, high energy efficiency
X-ray tube arc monitoring (TRM)---------High reliability, long service life
DC X-ray tube filament drive--------------High stability, high reliability, long service life
Supports extra-long high-voltage cables ----------------High performance, high reliability
Mean time between failures (MTBF): 28,000 hours
100% duty cycle for all products; after 8 hours of continuous operation, parameter drift is less than 0.01%
Capable of stable operation in the harshest working environments; meets MIL standard for vibration performance (optional)
Long service life, high maintainability, low maintenance cost
Key components independently designed and manufactured; low-cost repair parts provided
Common circuit boards and component modules across the entire product series
Lifetime supply of accessories; usable products will never be abandoned
High-voltage insulating oil can be replaced at room temperature and atmospheric pressure
Full warranty provided for the "Huatai Quality" series X-ray tubes
